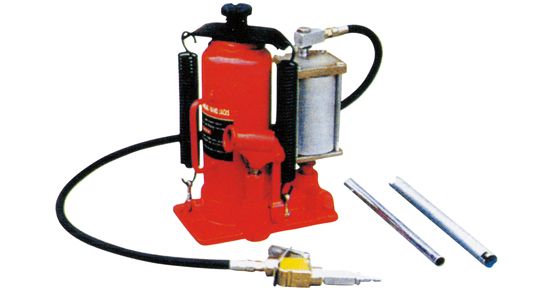

12 Ton Air Hydraulic Jack
- Capacity12 T
- Min. height235 mm
- Max. height440 mm
- Qty / 20’ 1,280
Air Hydraulic Jack (Air Bottle Jack) Manufacturer 12–80 Ton
JackMaker manufactures air hydraulic jacks – air-over-hydraulic bottle jacks from 12 to 50 tons and three-stage telescopic truck jacks up to 80 tons – for truck-equipment distributors, tyre-service chains, mining and fleet workshops. Connect shop air and the jack lifts a truck axle without pumping; a manual handle stays as back-up. Built and pressure-tested in our own factory in China, CE marked.
-
Air-powered lift with manual pump back-up on every model
-
Single-stage 12–50 ton and 3-stage telescopic 50/25/10 ton
-
Long handle with air control for use from outside the wheel arch
-
Wheels on heavy models to move the jack under the axle
- MOQ
- from 10 pcs
- Lead time
- from 1 day
- Certification
- TÜV GS · CE · ISO 9001
- Testing
- 100% pressure tested
Types and who they are for
The air hydraulic jacks range by construction, capacity and the buyers each type suits.
| Type | Capacity | What is different | Best for |
|---|---|---|---|
| Air hydraulic bottle jack | 12–50 T | Vertical ram, air motor plus manual pump, carrying handle | Truck tyre shops, bus depots, fleets |
| 3-stage telescopic truck jack | 50 / 25 / 10 T | Three rams with decreasing capacity give very high lift from a low start | Trailers, mining trucks, agriculture |
| Air hydraulic floor jack | 50/25 & 80/40 T | Long handle on wheels, two-stage air-over-hydraulic ram | Truck workshops, roadside service |
Models
Heights in millimetres and inches. Full variant tables (colour series, blow case, 20' loading) are on each model page.

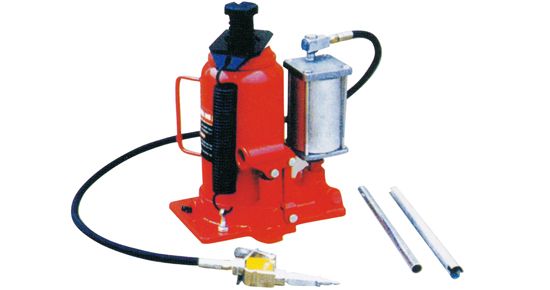

20 Ton Air Hydraulic Jack
- Capacity20 T
- Min. height235 mm
- Max. height440 mm
- Qty / 20’ 1,150
30 Ton Air Hydraulic Jack
- Capacity30 T
- Min. height280 mm
- Max. height470 mm
- Qty / 20’ 730
50 Ton Air Hydraulic Jack
- Capacity50 T
- Min. height315 mm
- Max. height490 mm
- Qty / 20’ 475
50/25/10 T Air Hydraulic Jack
- Capacity50/25/10 T
- Min. height151 mm
- Max. height—
- Qty / 20’ 220
What buyers inspect
The details importers check first when they sample air hydraulic jacks.
-
Safety overload valve on every unit
A factory-set bypass valve stops the ram when the rated load is exceeded – fewer warranty claims and no bent rams in the field.
-
Heavy-gauge base and cylinder
Bases are stamped from thick steel plate and cylinders are precision-honed, so seals last longer and oil stays where it belongs.
-
Chrome-plated ram and pump piston
Hard chrome resists rust and scoring in humid warehouses and workshops, keeping the lift smooth for years, not months.
-
Serrated saddle
Cross-hatched saddles grip the lifting point instead of sliding on greasy chassis rails – the first thing inspectors check.
-
Electrostatic powder coating in-house
Our own powder-coating line gives consistent colour batch after batch, and lets you order your brand colour without paying for outside finishing.
-
Clear rating labels in your language
Capacity, warnings and your logo are printed to your artwork – GS/CE or ASME PASE style label layouts available.
How to choose air hydraulic jacks for your market
The questions our sales engineers ask before they quote.
-
Tonnage by vehicle class
12–20 ton handles rigid trucks and buses; 30–50 ton is specified for loaded tractor units, trailers and construction machinery; the 3-stage 50/25/10 ton unit covers everything from low trailers to high-clearance mining equipment with one jack.
-
Air supply on site
Every model works from normal workshop compressed air; the exact working pressure and air consumption are on the model page. Where air is unreliable the manual pump takes over.
-
Single-stage or telescopic
Single-stage units are simpler and cheaper. Telescopic three-stage jacks give the highest lift from a low collapsed height and are the choice for mixed fleets.
-
Certification
CE to EN 1494 for Europe; manuals and labels adapted for North America, Australia and the Middle East on request.
Who is sourcing these
-
Auto-parts and tool distributors
Mixed containers across tonnages, brown-box or retail packaging, repeat orders on a schedule.
-
Private-label tool brands
Your colour, logo, manual and colour box. We have produced for US and German brands since the 1990s.
-
Workshop-equipment dealers
Garage, tyre-shop and fleet-maintenance customers who need GS/CE documentation and spare-part support.
-
Equipment rental companies
Welded, heavy-duty variants that survive being thrown in a van every day.
-
Industrial and rail buyers
Toe jacks, screw jacks and 50–200 ton bottle jacks for machinery moving, track work and construction.
Why source air hydraulic jacks from JackMaker
Factory, not trading company: we machine, assemble, coat, test and pack every jack in our own plant in Haiyan.
- Since 1978 Making jacks in Haiyan, China
- 3,000,000 Jacks per year
- 53,000 m² Plant, own powder-coating line
- 23 engineers Technical team for OEM projects
- TÜV GS · CE Certified models
- ISO 9001 Certified quality system
Customise air hydraulic jacks for your brand
Every option below is produced in-house. Minimums are per model unless stated; artwork approval and a pre-production sample come before mass production.
Quality control and compliance
Tested before it ships – inspection points from incoming steel to the packed carton.
- Incoming steel plate and seal material inspection
- Weld and machining checks during production
- 100% pressure test at rated load before packing
- Overload test on samples from every batch
- Release-valve and bypass-valve function test
- Coating thickness and adhesion check
- Label, manual and packaging check against your artwork
- Pre-shipment inspection with SGS / TÜV / BV on request
Applicable standards
A test report accompanies each shipment on request. Certificate PDFs and covered-model lists are on the certifications page; the full test routine is described under quality control.
Request a quote for air hydraulic jacks
FOB pricing, a spec sheet and a container loading plan within 12 hours, Mon–Sat.
Frequently asked questions
What is the MOQ for air hydraulic jacks?
10 pcs per model; air jacks are often shipped mixed with long-chassis floor jacks and 12 ton jack stands.
Do air hydraulic jacks work without compressed air?
Yes. Every model keeps a manual pump so it can be used at the roadside or where air is not available.
Which tonnage do truck tyre shops usually order?
20 ton and 30–35 ton are the most common; 50 ton where loaded tractor units or construction machinery are lifted.
What is the lead time?
Lead time is from 1 day; air jacks are built in batches, so confirm quantities early in the season.
Can you customise colour and label?
Yes – powder coating in any RAL colour and labels/manuals to your artwork from 500 pcs per model.
Do you provide spare seal kits?
Yes, seal kits and air-motor spares are available for every model under the 36-month warranty and after.
Sourcing air hydraulic jacks?
Send your model list and quantities – FOB pricing, spec sheets and a container loading plan within 12 hours.
