Hydraulic Bottle Jack Manufacturer & Wholesale Supplier (2–200 Ton)

JackMaker manufactures hydraulic bottle jacks from 2 to 200 tons for auto-parts distributors, workshop-equipment dealers and private-label tool brands in North America, Europe, the Middle East and Latin America. Every vertical jack leaves our Haiyan factory after a 100% pressure test; the range is TÜV GS and CE certified and has been exported to the USA and Germany for decades.

Get Wholesale Quote +86 573 8321 5763
  • 2–200 Ton
  • 13 model pages
  • MOQ from 10 pcs
JackMaker hydraulic bottle jacks 2–20 ton, T204a series in blue – product lineup

  • Four colour series (blue, red, green, silver) plus two-stage and welded builds

  • Retail-ready blow-moulded case version for hardware and automotive chains

  • GS-certified models available for the German and EU market

  • Industrial 50–200 ton units for machinery moving and rail

MOQ
from 10 pcs
Lead time
from 1 day
Certification
TÜV GS · CE · ISO 9001
Testing
100% pressure tested

Types and who they are for

The hydraulic bottle jacks range by construction, capacity and the buyers each type suits.

Type Capacity What is different Best for
Standard bottle jack 2–50 T Single-stage ram, screw extension, 4 colour series (T204 / T202 / T205 / T203) Distributors, tool brands, workshop dealers
Two-stage bottle jack 2–50 T Telescopic ram gives more lift from the same collapsed height Trucks, 4×4, rental fleets
Welded bottle jack 2–50 T Welded cylinder-to-base joint instead of threaded – no loosening, fewer leaks Heavy-duty, rental, mining
Bottle jack in blow case 2–32 T Blow-moulded carry case with printed insert, hang-hole Retail chains, e-commerce, gift sets

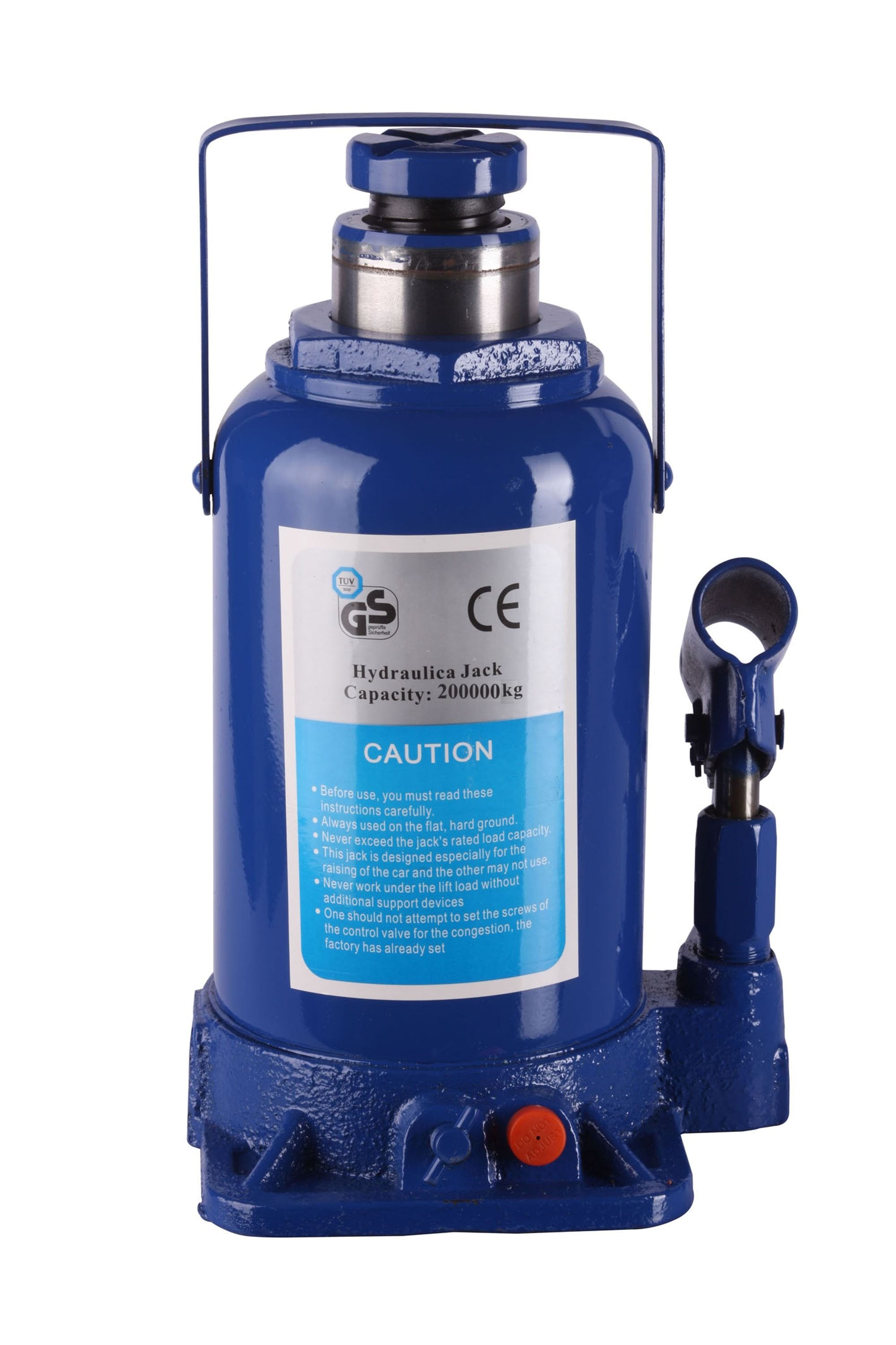

Industrial bottle jack 50–200 T Large-diameter ram, reinforced base, carrying handles Machinery movers, rail, construction, shipyards

Models

Heights in millimetres and inches. Full variant tables (colour series, blow case, 20' loading) are on each model page.

Download spec sheet (PDF)

Hydraulic Bottle Jacks by type

Each sub-range has its own model list, FAQ and quote form.

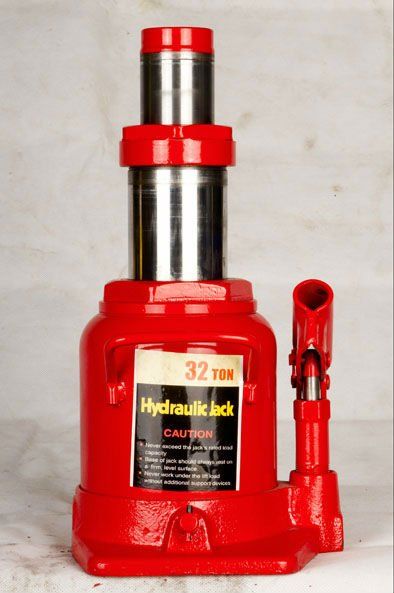

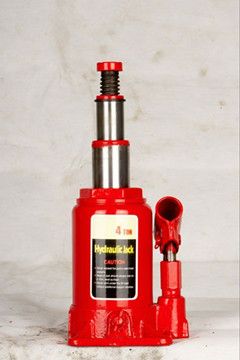

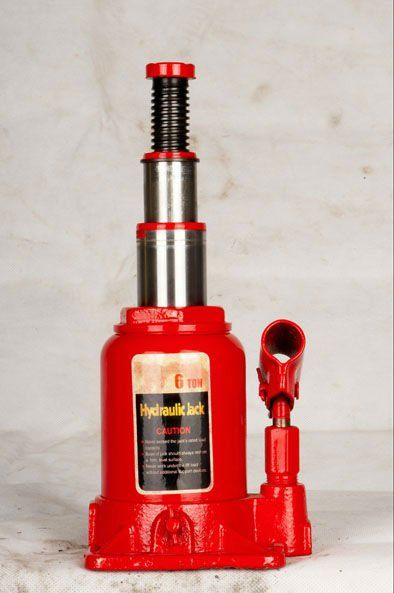

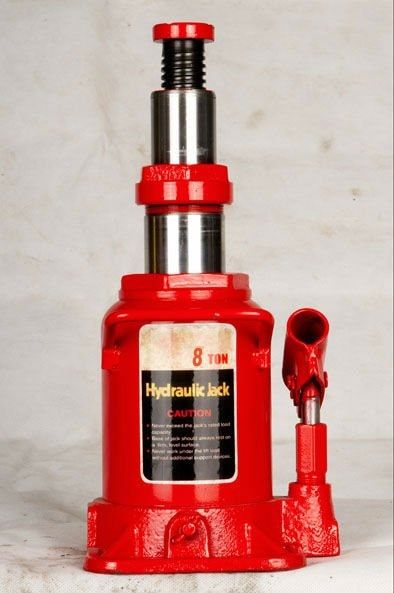

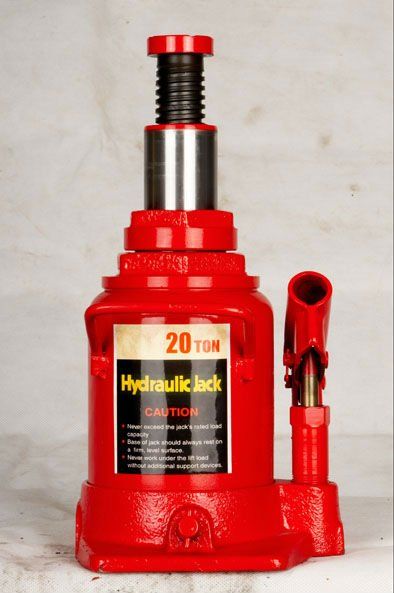

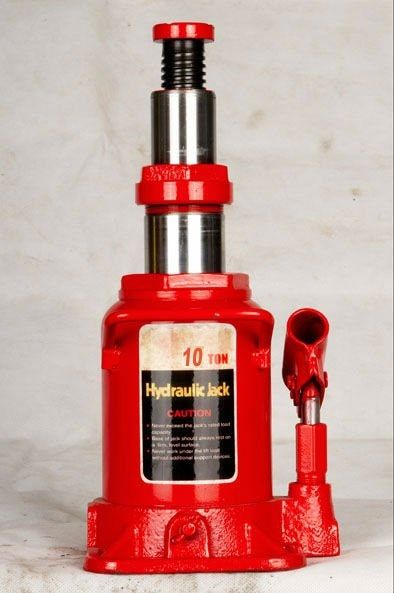

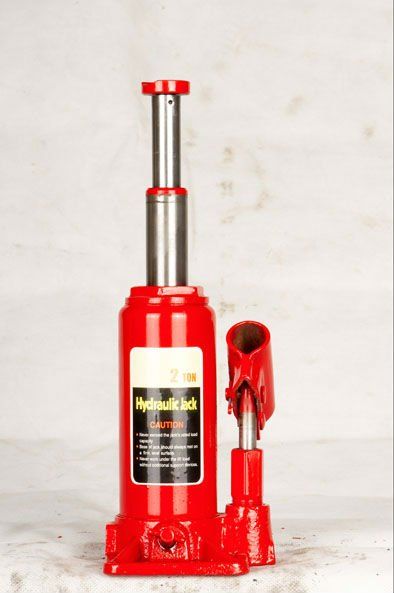

Two-Stage Bottle Jacks

Two-stage bottle jacks use a telescopic ram: the first stage lifts quickly under light load, the second stage takes over at rated load. Compared with a standard jack of the same collapsed height they deliver considerably more hydraulic lift, which is why truck, bus and 4×4 dealers specify them.

See models

Welded Bottle Jacks

In a welded bottle jack the cylinder is welded to the base instead of threaded into it. There is no joint to work loose after years of vibration and side loading, so these "s" series units are the specification for equipment rental, mining and heavy-transport workshops.

See models

Bottle Jacks in Blow-Moulded Case

The blow-case version packs a standard bottle jack, handle and instructions in a rigid blow-moulded case with a printed insert and hang-hole. It is the format hardware chains and online marketplaces prefer: it stacks on a shelf, survives parcel shipping and carries your brand on every face.

See models

What buyers inspect

The details importers check first when they sample hydraulic bottle jacks.

  • Safety overload (bypass) valve

    Factory-set to open just above rated load, so an operator cannot over-pressurise the cylinder. Fewer field failures and fewer claims for your after-sales team.

  • Heavy stamped base, forged saddle

    The base plate is stamped from thick steel and the serrated saddle is forged, not cast – the two parts that decide whether a jack survives a rental fleet.

  • Precision-honed cylinder, chrome ram

    Consistent bore finish and a hard-chrome ram keep the Y-seal tight. The result is a jack that holds load overnight without creeping.

  • Screw extension for extra reach

    A threaded extension screw adds adjustable height on top of the hydraulic lift (exact figures in each model table), so one model covers more vehicles and fewer SKUs sit on your shelf.

  • In-house electrostatic powder coating

    Blue, red, green and silver are stock colours; any RAL colour can be matched on our own line, with the same coating thickness batch after batch.

  • Your label, your language

    Rating labels and manuals printed to your artwork in GS/CE or ASME PASE layouts. Colour box, brown box or blow case – all packed in our own packing hall.

How to choose hydraulic bottle jacks for your market

The questions our sales engineers ask before they quote.

Ask a sales engineer

  1. Capacity versus the vehicles your customers lift

    2–4 ton units cover passenger cars and SUVs; 6–12 ton for vans, pickups and light trucks; 20–32 ton for trucks, buses and agricultural machinery; 50–200 ton for industrial loads. Most distributors stock 2, 4, 6, 10, 12, 20 and 32 ton as the core range.

  2. Minimum height versus ground clearance

    A bottle jack needs to slide under the lifting point at its collapsed height. Lower-capacity models have the lowest collapsed height and suit modern cars; higher-capacity units are taller and are meant for trucks and equipment. Compare the minimum-height column in the model tables against the ground clearance of the vehicles your customers service.

  3. Standard, two-stage or welded

    Standard is the volume seller. Two-stage delivers noticeably more hydraulic lift from a similar collapsed height, useful for 4×4 and trucks. Welded construction is the choice for rental fleets and mining sites where a threaded cylinder base could loosen.

  4. GS/CE for Europe, ASME PASE-style for North America

    German and EU distributors ask for the TÜV GS mark and EN 1494 compliance. North American buyers expect ASME PASE-style labelling and manuals. Tell us the target market and we build and label the version you need.

  5. Retail packaging or workshop packaging

    Blow-moulded cases and colour boxes with hang-holes sell in hardware chains and online; plain brown boxes with a printed label are cheaper and faster for workshop supply. Mixed packaging in one container is fine.

Who is sourcing these

  • Auto-parts and tool distributors

    Mixed containers across tonnages, brown-box or retail packaging, repeat orders on a schedule.

  • Private-label tool brands

    Your colour, logo, manual and colour box. We have produced for US and German brands since the 1990s.

  • Workshop-equipment dealers

    Garage, tyre-shop and fleet-maintenance customers who need GS/CE documentation and spare-part support.

  • Equipment rental companies

    Welded, heavy-duty variants that survive being thrown in a van every day.

  • Industrial and rail buyers

    Toe jacks, screw jacks and 50–200 ton bottle jacks for machinery moving, track work and construction.

Why source hydraulic bottle jacks from JackMaker

Factory, not trading company: we machine, assemble, coat, test and pack every jack in our own plant in Haiyan.

  • Since 1978 Making jacks in Haiyan, China
  • 3,000,000 Jacks per year
  • 53,000 m² Plant, own powder-coating line
  • 23 engineers Technical team for OEM projects
  • TÜV GS · CE Certified models
  • ISO 9001 Certified quality system

Take the factory tour See certificates

Customise hydraulic bottle jacks for your brand

Every option below is produced in-house. Minimums are per model unless stated; artwork approval and a pre-production sample come before mass production.

  • Colour

    Blue, red, green, silver in stock; any RAL colour to order

    Minimum 500 pcs

  • Logo

    Silk-screen, laser engraving, sticker or cast-in badge

    Minimum 10 pcs

  • Packaging

    Brown box, colour box, blow-moulded case, wooden case

    Minimum Colour box from 500 pcs

  • Manual & labels

    Your language, your part numbers, GS/CE or ASME PASE layouts

    Minimum No extra MOQ

  • Certification version

    GS-certified build, CE, ASME PASE-style specification

    Minimum Per model list

  • Accessories

    Rubber saddle pads, foam handle grips, extra saddles, oil

    Minimum Per order

Start an OEM project

Quality control and compliance

Tested before it ships – inspection points from incoming steel to the packed carton.

  1. Incoming steel plate and seal material inspection
  2. Weld and machining checks during production
  3. 100% pressure test at rated load before packing
  4. Overload test on samples from every batch
  5. Release-valve and bypass-valve function test
  6. Coating thickness and adhesion check
  7. Label, manual and packaging check against your artwork
  8. Pre-shipment inspection with SGS / TÜV / BV on request

Applicable standards

  • EN 1494 (GS / CE)
  • ASME PASE-2019 (specification on request)
  • ISO 9001 quality system

A test report accompanies each shipment on request. Certificate PDFs and covered-model lists are on the certifications page; the full test routine is described under quality control.

Request a quote for hydraulic bottle jacks

FOB pricing, a spec sheet and a container loading plan within 12 hours, Mon–Sat.

Request a quote

Quote within 12 hours, Mon–Sat

To quote accurately, please tell us:

  • Tonnages and quantity per tonnage
  • Colour series (blue / red / green / silver / custom RAL)
  • Standard, two-stage or welded build
  • Packaging: brown box, colour box or blow case
  • Target market (GS/CE or ASME PASE labelling)
  • Logo requirements and delivery port

We reply from a named sales engineer. No newsletters, no data sharing. Privacy

Export Sales Team, Sales Engineer
+86 573 8321 5763

Frequently asked questions

What is the MOQ for hydraulic bottle jacks?

10 pcs per model in a stock colour; different tonnages can be mixed in one container. Custom colours and colour-box packaging start at 500 pcs per model. The exact quantity per 20' or 40'HQ container is listed on each model page and in the loading plan we send with every quote.

Which bottle jack models are GS certified?

Our TÜV Rheinland GS certificate covers the vertical hydraulic jack range produced in Haiyan. We send the certificate PDF and the covered-model list with every quote; certificate numbers can be verified on the TÜV Certipedia database.

Can you produce our brand colour and logo?

Yes. We powder-coat in-house, so any RAL colour is possible from 500 pcs per model. Logos are silk-screened or applied as a durable label; the rating label, warning text and manual are printed to your artwork.

What is the lead time for bottle jacks?

Lead time is from 1 day for stock colours. A first OEM order adds 7–10 days for artwork approval and pre-production samples. Peak season (August–October) can add one to two weeks – book early.

Do you offer samples?

Yes. Samples of stock models ship within 7–10 days by courier. Sample fee refunded against the first bulk order.

What is the difference between the blue, red, green and silver series?

The four series share the same hydraulic unit and rated capacities; they differ in colour, saddle and screw design details and in the packaging they are usually sold with. Distributors typically pick one series as their house range and add a second colour for a private label.

How do you quote – FOB, CIF or DDP?

Standard quotes are FOB Shanghai or Ningbo. CIF and DDP are available for regular customers who prefer a landed price.

What warranty comes with your bottle jacks?

36 months against manufacturing defects. Seal kits and pump assemblies are stocked for every model so your customers can service jacks locally.
