Hydraulic Floor Jack (Trolley Jack) Manufacturer 1.5–20 Ton

JackMaker builds hydraulic floor jacks – trolley jacks to UK and Australian buyers – for auto-parts distributors, workshop-equipment dealers and private-label tool brands. The range runs from 1.5 ton aluminium racing jacks and 2–4 ton low-profile garage jacks to 5–20 ton long-chassis jacks for truck fleets, all produced and pressure-tested in our own factory in Haiyan, China, and CE certified for the European market.

Get Wholesale Quote +86 573 8321 5763
  • 1.5–20 Ton
  • 13 model pages
  • MOQ from 10 pcs
Low profile hydraulic floor jack T33001, blue – JackMaker floor jack range

  • Single-pump and dual-pump (rapid lift) hydraulics

  • Steel, aluminium and hybrid steel/aluminium frames

  • Low-profile models for sports cars and lowered vehicles

  • 5–20 ton long-chassis jacks for trucks, buses and agriculture

MOQ
from 10 pcs
Lead time
from 1 day
Certification
TÜV GS · CE · ISO 9001
Testing
100% pressure tested

Types and who they are for

The hydraulic floor jacks range by construction, capacity and the buyers each type suits.

Type Capacity What is different Best for
Standard floor jack 2–4 T Steel frame, single pump, swivel saddle, steel casters Distributors, retail, general workshops
Low-profile floor jack 2–3 T Very low collapsed height, long chassis, dual pump Sports cars, tuning shops, tyre chains
Aluminium racing jack 1.5–3 T Aluminium frame and arm, far lighter than steel, dual pump Motorsport, mobile tyre service, premium retail
Long-chassis floor jack 5–20 T Long frame, large saddle, high lift for trucks and buses Truck workshops, fleets, agriculture
Air hydraulic floor jack 50/25 & 80/40 T Two-stage air-over-hydraulic ram, runs on shop air Truck tyre shops, mining fleets

Models

Heights in millimetres and inches. Full variant tables (colour series, blow case, 20' loading) are on each model page.

Download spec sheet (PDF)

Hydraulic Floor Jacks by type

Each sub-range has its own model list, FAQ and quote form.

Low-Profile Floor Jacks

Low-profile floor jacks start under the sills of lowered cars and sports models where a standard trolley jack will not fit. Our 2 and 3 ton low-profile models combine a long reach chassis with dual-pump rapid lift, and are the top request from tyre chains, tuning shops and online retailers.

See models

Aluminium Racing Jacks

Aluminium racing jacks weigh far less than a steel jack of the same capacity (net weights are in the model tables), which is why mobile tyre fitters, motorsport teams and premium retailers ask for them. Frames and arms are aluminium alloy with a steel hydraulic unit; dual-pump hydraulics and a low-profile saddle come as standard.

See models

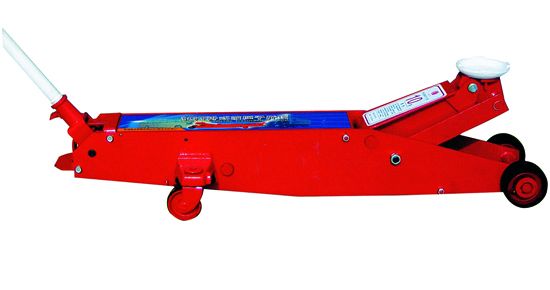

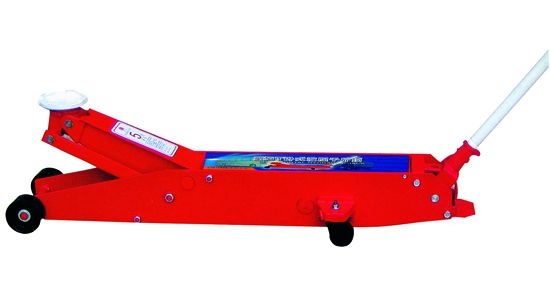

Long-Chassis Floor Jacks

Long-chassis floor jacks reach the lifting points of trucks, buses and tractors and lift them high enough for wheel changes. The 5–20 ton range uses a long welded frame, a large saddle and a long handle for leverage, and is the standard trolley jack in truck workshops and fleet depots.

See models

Air Hydraulic Floor Jacks

Air hydraulic floor jacks connect to shop air and lift a truck axle without pumping. The 50/25 and 80/40 ton models have a two-stage ram: the first stage takes the full rating, the second extends further at half the rating. They are built for truck tyre shops, bus depots and mining fleets that lift heavy axles all day.

See models

What buyers inspect

The details importers check first when they sample hydraulic floor jacks.

  • Safety overload valve and bypass

    A pressure-limiting valve prevents lifting beyond rated load and a bypass protects the ram at full extension – the two protections EN 1494 and ASME PASE inspectors look for.

  • Dual-pump rapid lift (selected models)

    Two pump pistons raise the saddle to the vehicle in a few strokes, then switch to the high-pressure piston under load. Fewer pumps per lift is the feature workshop buyers notice first.

  • Welded steel chassis, reinforced lift arm

    Frames are welded from thick steel plate with a boxed lift arm – minimal flex under a 3 ton load and a longer service life in busy shops.

  • Swivel saddle with rubber pad option

    Large-diameter swivel saddles with serrations or a removable rubber pad protect sills and pinch welds; extension adapters for SUVs are available.

  • Steel or polyurethane casters

    Two fixed steel wheels and two swivel casters as standard; polyurethane-coated casters for showroom and epoxy floors on request.

  • Powder-coated in your colour

    Red, blue, black and yellow are stock; any RAL colour on our own coating line for private-label programmes. Foam handle grips and printed saddle pads carry your logo.

How to choose hydraulic floor jacks for your market

The questions our sales engineers ask before they quote.

Ask a sales engineer

  1. Capacity: 2, 2.5, 3 or 4 ton?

    2 ton is the price-point seller for cars; 2.5–3 ton is the workshop standard covering SUVs and light trucks and the biggest B2B volume in the US, UK and Australia; 4 ton and above serve vans and pickups. Most distributors stock 2, 3 and 4 ton in one colour family.

  2. Low profile or standard height

    Lowered cars and many modern sports models need a saddle that starts very low; standard jacks with a higher minimum height cost less and often lift higher. The minimum and maximum saddle heights are listed for every model – tell us the customer base and we will suggest the split.

  3. Single pump or dual pump

    Dual pump saves time on every lift and is the selling feature of premium lines. For price-driven retail the single-pump version keeps the landed cost down; both share the same chassis so mixed containers are easy.

  4. Steel, aluminium or hybrid

    Steel is the value choice for garages. Aluminium halves the weight for mobile tyre fitters and motorsport, at a higher unit price. Hybrid frames (aluminium chassis, steel arm) sit in between.

  5. Certification and labelling by market

    EU and UK dealers want CE (EN 1494) and increasingly GS; North American buyers expect ASME PASE-style manuals and labels; Australia follows AS/NZS 2615-style labelling. We build and label per destination.

Who is sourcing these

  • Auto-parts and tool distributors

    Mixed containers across tonnages, brown-box or retail packaging, repeat orders on a schedule.

  • Private-label tool brands

    Your colour, logo, manual and colour box. We have produced for US and German brands since the 1990s.

  • Workshop-equipment dealers

    Garage, tyre-shop and fleet-maintenance customers who need GS/CE documentation and spare-part support.

  • Equipment rental companies

    Welded, heavy-duty variants that survive being thrown in a van every day.

  • Industrial and rail buyers

    Toe jacks, screw jacks and 50–200 ton bottle jacks for machinery moving, track work and construction.

Why source hydraulic floor jacks from JackMaker

Factory, not trading company: we machine, assemble, coat, test and pack every jack in our own plant in Haiyan.

  • Since 1978 Making jacks in Haiyan, China
  • 3,000,000 Jacks per year
  • 53,000 m² Plant, own powder-coating line
  • 23 engineers Technical team for OEM projects
  • TÜV GS · CE Certified models
  • ISO 9001 Certified quality system

Take the factory tour See certificates

Customise hydraulic floor jacks for your brand

Every option below is produced in-house. Minimums are per model unless stated; artwork approval and a pre-production sample come before mass production.

  • Colour

    Blue, red, green, silver in stock; any RAL colour to order

    Minimum 500 pcs

  • Logo

    Silk-screen, laser engraving, sticker or cast-in badge

    Minimum 10 pcs

  • Packaging

    Brown box, colour box, blow-moulded case, wooden case

    Minimum Colour box from 500 pcs

  • Manual & labels

    Your language, your part numbers, GS/CE or ASME PASE layouts

    Minimum No extra MOQ

  • Certification version

    GS-certified build, CE, ASME PASE-style specification

    Minimum Per model list

  • Accessories

    Rubber saddle pads, foam handle grips, extra saddles, oil

    Minimum Per order

Start an OEM project

Quality control and compliance

Tested before it ships – inspection points from incoming steel to the packed carton.

  1. Incoming steel plate and seal material inspection
  2. Weld and machining checks during production
  3. 100% pressure test at rated load before packing
  4. Overload test on samples from every batch
  5. Release-valve and bypass-valve function test
  6. Coating thickness and adhesion check
  7. Label, manual and packaging check against your artwork
  8. Pre-shipment inspection with SGS / TÜV / BV on request

Applicable standards

  • EN 1494 (GS / CE)
  • ASME PASE-2019 (specification on request)
  • ISO 9001 quality system

A test report accompanies each shipment on request. Certificate PDFs and covered-model lists are on the certifications page; the full test routine is described under quality control.

Request a quote for hydraulic floor jacks

FOB pricing, a spec sheet and a container loading plan within 12 hours, Mon–Sat.

Request a quote

Quote within 12 hours, Mon–Sat

To quote accurately, please tell us:

  • Capacity and quantity per model
  • Standard, low-profile or aluminium
  • Single or dual pump
  • Colour and logo requirements
  • Target market (CE / GS / ASME PASE labelling)
  • Packaging (brown box, colour box) and delivery port

We reply from a named sales engineer. No newsletters, no data sharing. Privacy

Export Sales Team, Sales Engineer
+86 573 8321 5763

Frequently asked questions

What is the MOQ for floor jacks?

10 pcs per model in a stock colour. Custom colours and colour boxes start at 500 pcs. Floor jacks are usually shipped together with jack stands and bottle jacks in a mixed 40'HQ.

What is the difference between a trolley jack and a floor jack?

Nothing mechanically – 'trolley jack' is the term used in the UK, Ireland, Australia and South Africa, 'floor jack' or 'garage jack' in North America. We label and write manuals in the terminology of your market.

Do you make low-profile floor jacks?

Yes – 2 and 3 ton low-profile models with a long chassis and dual pump, designed for lowered vehicles and sports cars. See the low-profile floor jack page for the model list.

Can we have our own colour and logo on the jack?

Yes. We powder-coat in-house so any RAL colour is possible from 500 pcs per model. Logos go on the frame by silk-screen or label, and on the handle foam and saddle pad.

What is the lead time for floor jacks?

Lead time is from 1 day for stock colours; a first OEM order adds 7–10 days for artwork approval and pre-production samples.

Are your floor jacks CE or GS certified?

The range is CE marked to EN 1494. GS-certified versions of selected models are available for the German market – ask for the current certificate list.

Do you supply spare parts?

Seal kits, pump assemblies, release valves and casters are stocked for every model, so your customers can service jacks locally under the 36-month warranty.

How do you quote?

FOB Shanghai or Ningbo as standard; CIF or DDP on request. We include a container loading plan with every quote.
