2 Ton Hydraulic Bottle Jack
- Capacity2 T
- Min. height170 mm
- Max. height380 mm
- Qty / 20’ 4,180

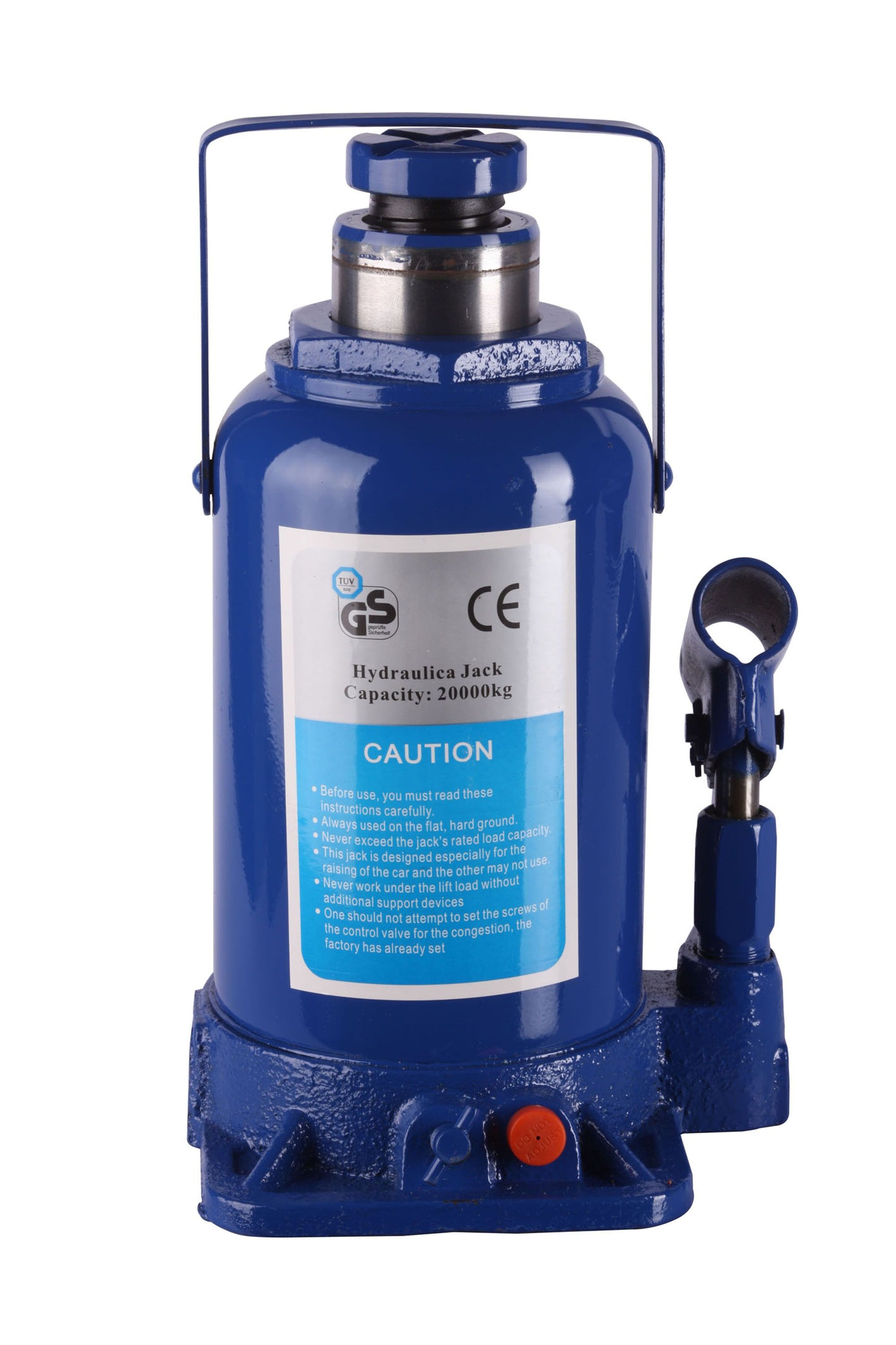

20 Ton Hydraulic Bottle Jack – Wholesale & OEM
Long 115 mm screw extension – 506 mm max height
- Capacity
- 20 Ton (40,000 lbs)
- Min. height
- 243 mm / 9.6 in
- Max. height
- 506 mm / 19.9 in
- MOQ
- 10 pcs
- Lead time
- from 1 day
- Port
- FOB Shanghai / Ningbo
- Packaging
- Brown box
- Certification
- CE
Specifications – this capacity
9 variants of the same capacity: colour series, construction and packaging.
| Model | Series | Capacity | Min. height | Lift height | Screw adjustment | Max. height | Net weight | Qty / 20’ | Certification | First stage lift (mm) | Second stage lift (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| T-20520 | T-205 Blue Wide Body | 20 T | 243 mm / 9.6 in | 148 mm / 5.8 in | 115 mm / 4.5 in | 506 mm / 19.9 in | 10.5 kg / 23.1 lbs | 1,550 | CE | — | — |
| T02020 | T020 Two-Stage | 20 T | 235 mm / 9.3 in | 285 mm / 11.2 in | 50 mm / 2.0 in | 570 mm / 22.4 in | 15.5 kg / 34.2 lbs | 1,100 | CE | 140 | 145 |
| T20120 | T201 / QYL Heavy-Duty | 20 T | 280 mm / 11.0 in | 180 mm / 7.1 in | — | 460 mm / 18.1 in | 15 kg / 33.1 lbs | 1,000 | CE | — | — |
| T20220 | T202 Red | 20 T | 235 mm / 9.3 in | 145 mm / 5.7 in | 60 mm / 2.4 in | 440 mm / 17.3 in | 9.8 kg / 21.6 lbs | 1,558 | CE | — | — |
| T20220s | T202s Welded | 20 T | 190 mm / 7.5 in | 95 mm / 3.7 in | 50 mm / 2.0 in | 335 mm / 13.2 in | 8.2 kg / 18.1 lbs | 1,770 | CE | — | — |
| T20320 | T203 Silver | 20 T | 242 mm / 9.5 in | 150 mm / 5.9 in | 60 mm / 2.4 in | 452 mm / 17.8 in | 10 kg / 22.0 lbs | 1,530 | CE | — | — |
| T20420 | T204 Blue | 20 T | 235 mm / 9.3 in | 145 mm / 5.7 in | 60 mm / 2.4 in | 440 mm / 17.3 in | 10 kg / 22.0 lbs | 1,558 | GS, CE | — | — |
| T20420a | T204a Blue (high lift) | 20 T | 242 mm / 9.5 in | 150 mm / 5.9 in | 60 mm / 2.4 in | 452 mm / 17.8 in | 10.2 kg / 22.5 lbs | 1,530 | GS, CE | — | — |
| T20520 | T205 Green | 20 T | 220 mm / 8.7 in | 140 mm / 5.5 in | 60 mm / 2.4 in | 420 mm / 16.5 in | 8.1 kg / 17.9 lbs | 1,558 | CE | — | — |
Wholesale terms
- MOQ 10 pcs in a stock colour; custom colour from 500 pcs
- Lead time from 1 day; shipping date confirmed with the quote
- Payment: T/T, PayPal, WeChat Pay and Alipay
- Samples: Sample fee refunded against the first bulk order. Sample lead time 7–10 days
- Warranty 36 months against manufacturing defects
- Price: FOB quote within 12 hours – we do not publish a public price list
Which variant?
Rows in the table above are the same capacity in different series (colour, structure or packaging). Distributors usually pick one series as the house range and add a blow-case version for retail.
Get an FOB quote for T-20520
Tell us quantity, target market and whether you need custom colour or packaging. We reply within 12 hours with pricing, a spec sheet and a loading plan.
- MOQ
- 10 pcs
- Lead time
- from 1 day
- Port
- FOB Shanghai / Ningbo
Frequently asked questions
What is the MOQ for hydraulic bottle jack?
Our standard MOQ is 10 pcs per model for stock colours. Custom colours and colour-box packaging start from 500 pcs. Different models and tonnages can be combined in one container.
Can I get samples before ordering?
Yes. Samples ship in 7–10 days. Sample fee refunded against the first bulk order.
What is the lead time?
Lead time is from 1 day. We confirm the shipping date for your quantity with the quote; a first OEM order adds 7–10 days for artwork approval and a pre-production sample.
Which payment methods do you accept?
We accept T/T, PayPal, WeChat Pay and Alipay.
Which hydraulic bottle jack models are GS certified?
Our GS certificate from TÜV Rheinland covers the vertical hydraulic (bottle) jack range; CE marking applies to the full lifting range. See the certification page for certificate numbers and covered model lists – we send the PDF with every quote.
