2 Ton Hydraulic Bottle Jack – Wholesale & OEM

Telescopic two-stage ram: 100 mm + 100 mm lift

12 models: T02002, T20102, T20202, T20202B, T20202s, T20302 and 6 more

Get FOB Quote +86 573 8321 5763 Spec sheet
  • GS
  • CE
  • MOQ 10 pcs
2 Ton Two-Stage Hydraulic Bottle Jack T02002 – main view

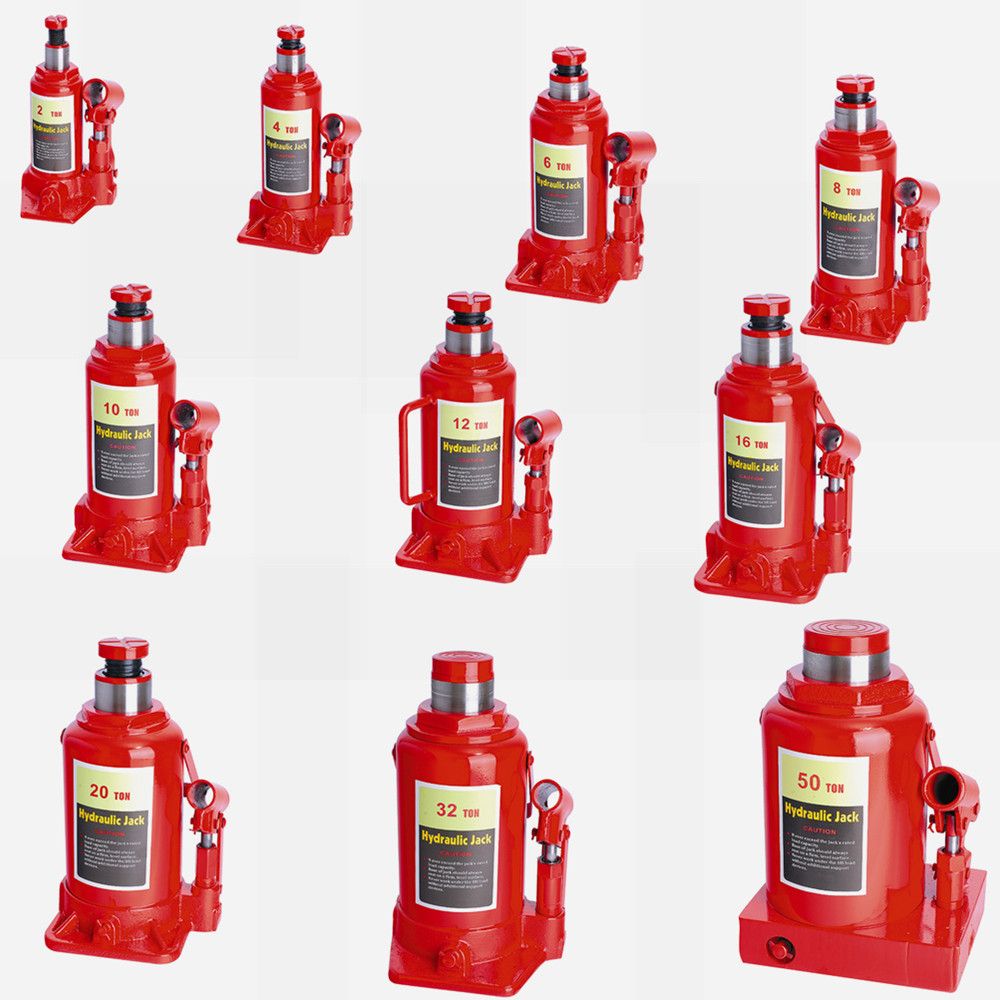

  • 2 Ton Hydraulic Bottle Jack T20202 – series lineup

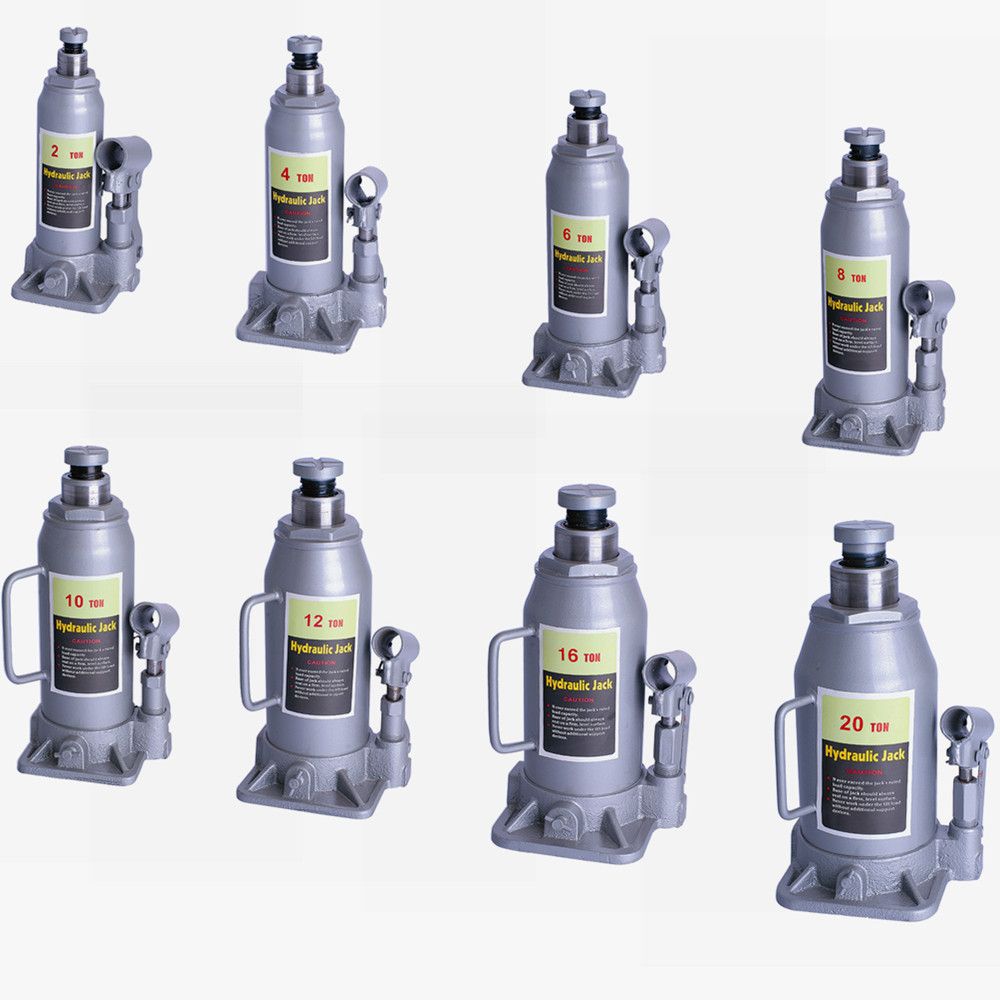

  • 2 Ton Hydraulic Bottle Jack T20302 – series lineup

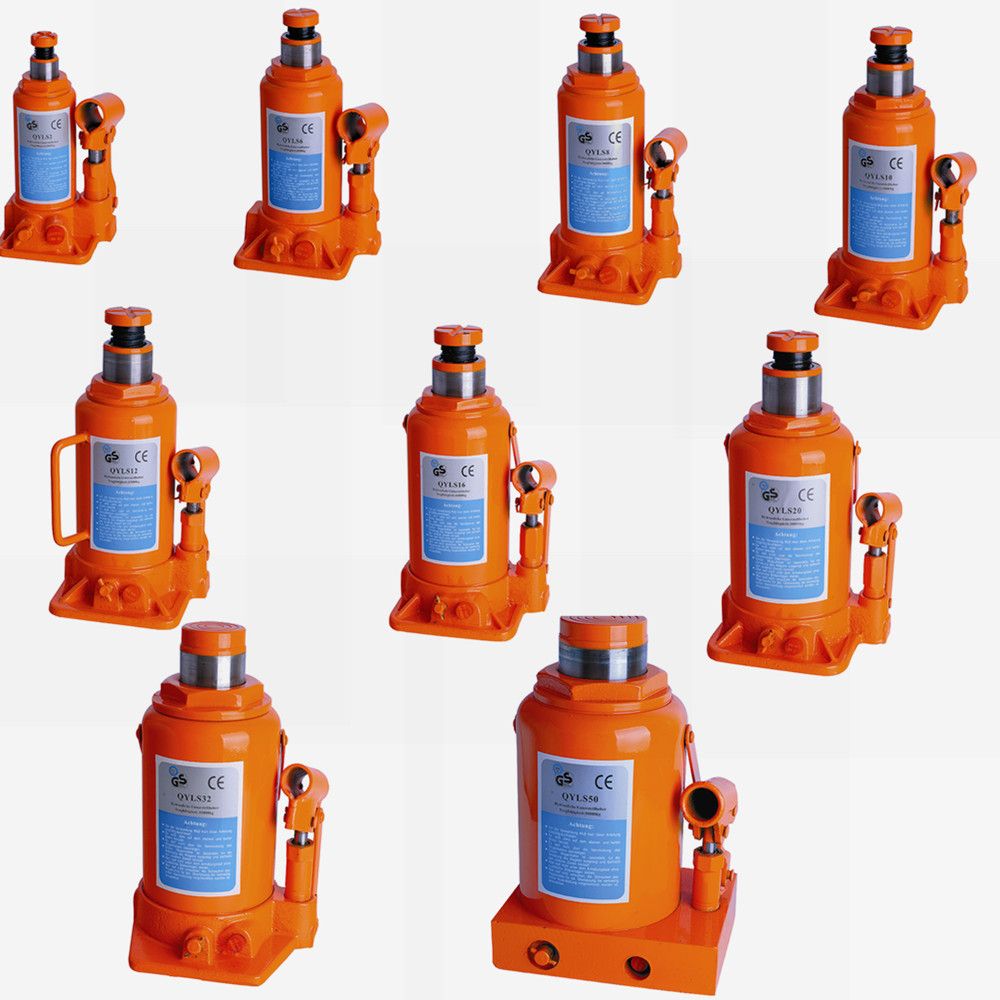

  • 2 Ton Hydraulic Bottle Jack T20402 – series lineup
  • 2 Ton Hydraulic Bottle Jack T20402a – series lineup
Capacity
2 Ton (4,000 lbs)
Min. height
170 mm / 6.7 in
Max. height
380 mm / 15.0 in
MOQ
10 pcs
Lead time
from 1 day
Port
FOB Shanghai / Ningbo
Packaging
Brown box
Certification
CE

Specifications – this capacity

12 variants of the same capacity: colour series, construction and packaging.

Model Series Capacity Min. height Lift height Screw adjustment Max. height Net weight Qty / 20’ Certification First stage lift (mm)Second stage lift (mm)
T02002 T020 Two-Stage 2 T 170 mm / 6.7 in 200 mm / 7.9 in — 380 mm / 15.0 in 3.4 kg / 7.5 lbs 4,180 CE 100100
T20102 T201 / QYL Heavy-Duty 2 T 158 mm / 6.2 in 90 mm / 3.5 in 60 mm / 2.4 in 308 mm / 12.1 in 2.2 kg / 4.9 lbs 7,200 CE ——
T20202 T202 Red 2 T 148 mm / 5.8 in 80 mm / 3.1 in 50 mm / 2.0 in 278 mm / 10.9 in 2.1 kg / 4.6 lbs 7,200 CE ——
T20202B T202 Red 2 T 148 mm / 5.8 in 80 mm / 3.1 in 50 mm / 2.0 in 278 mm / 10.9 in 2.1 kg / 4.6 lbs 6,350 CE ——
T20202s T202s Welded 2 T 105 mm / 4.1 in 50 mm / 2.0 in — 155 mm / 6.1 in 1.7 kg / 3.7 lbs 10,000 CE ——
T20302 T203 Silver 2 T 181 mm / 7.1 in 116 mm / 4.6 in 48 mm / 1.9 in 345 mm / 13.6 in 2.4 kg / 5.3 lbs 6,390 CE ——
T20302B T203 Silver 2 T 181 mm / 7.1 in 116 mm / 4.6 in 48 mm / 1.9 in 345 mm / 13.6 in 2.4 kg / 5.3 lbs 5,570 CE ——
T20402 T204 Blue 2 T 148 mm / 5.8 in 80 mm / 3.1 in 50 mm / 2.0 in 278 mm / 10.9 in 2.3 kg / 5.1 lbs 7,200 GS, CE ——
T20402a T204a Blue (high lift) 2 T 181 mm / 7.1 in 116 mm / 4.6 in 48 mm / 1.9 in 345 mm / 13.6 in 2.5 kg / 5.5 lbs 6,390 GS, CE ——
T20402aB T204a Blue (high lift) 2 T 181 mm / 7.1 in 116 mm / 4.6 in 48 mm / 1.9 in 345 mm / 13.6 in 2.5 kg / 5.5 lbs 5,570 GS, CE ——
T20402B T204 Blue 2 T 148 mm / 5.8 in 80 mm / 3.1 in 50 mm / 2.0 in 278 mm / 10.9 in 2.3 kg / 5.1 lbs 6,350 GS, CE ——
T20502 T205 Green 2 T 150 mm / 5.9 in 90 mm / 3.5 in 50 mm / 2.0 in 290 mm / 11.4 in 2.3 kg / 5.1 lbs 7,200 CE ——

Wholesale terms

  • MOQ 10 pcs in a stock colour; custom colour from 500 pcs
  • Lead time from 1 day; shipping date confirmed with the quote
  • Payment: T/T, PayPal, WeChat Pay and Alipay
  • Samples: Sample fee refunded against the first bulk order. Sample lead time 7–10 days
  • Warranty 36 months against manufacturing defects
  • Price: FOB quote within 12 hours – we do not publish a public price list

Which variant?

Rows in the table above are the same capacity in different series (colour, structure or packaging). Distributors usually pick one series as the house range and add a blow-case version for retail.

Get FOB Quote OEM options

Get an FOB quote for T02002

Tell us quantity, target market and whether you need custom colour or packaging. We reply within 12 hours with pricing, a spec sheet and a loading plan.

MOQ
10 pcs
Lead time
from 1 day
Port
FOB Shanghai / Ningbo

Get a wholesale quote in 12 hours

Quote within 12 hours, Mon–Sat

PDF / JPG / AI / STEP, up to 20 MB

We reply from a named sales engineer. No newsletters, no data sharing. Privacy

Export Sales Team, Sales Engineer
+86 573 8321 5763

Frequently asked questions

What is the MOQ for hydraulic bottle jack?

Our standard MOQ is 10 pcs per model for stock colours. Custom colours and colour-box packaging start from 500 pcs. Different models and tonnages can be combined in one container.

Can I get samples before ordering?

Yes. Samples ship in 7–10 days. Sample fee refunded against the first bulk order.

What is the lead time?

Lead time is from 1 day. We confirm the shipping date for your quantity with the quote; a first OEM order adds 7–10 days for artwork approval and a pre-production sample.

Which payment methods do you accept?

We accept T/T, PayPal, WeChat Pay and Alipay.

Which hydraulic bottle jack models are GS certified?

Our GS certificate from TÜV Rheinland covers the vertical hydraulic (bottle) jack range; CE marking applies to the full lifting range. See the certification page for certificate numbers and covered model lists – we send the PDF with every quote.
